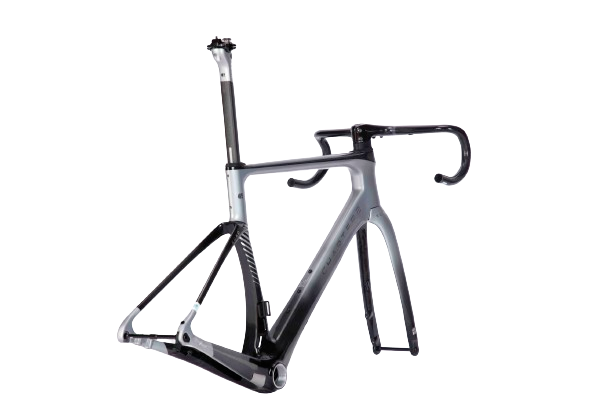

Chapter2 KOKO Carbon Disc Brake Frameset - Options

Original price $2,999 USD - Original price $2,999 USD
Original price
$2,999 USD
$2,999 USD - $2,999 USD
Current price $2,999 USD
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
Out of stock

Usually shipped within 24 hours

Size: XXS / SILVER + UD (PONGA)

Chapter2 KOKO Carbon Disc Brake Frameset - Options.

*** this is a special order that we will ship at the end of February approximately ****.

Air resistance is the single most critical factor that separates a fast bike from a bike that cuts through the air like a bird. KOKO means “to soar, fly” in Maori and as the name suggests, our Top Tier Aero Road model will have you smiling from ear to ear from the sheer thrill of unadulterated speed.

Taking the RERE’s Aero credentials to the next level, the KOKO now has Kamm-Tail profiles incorporated into the downtube, increasing the overall stiffness of the bottom bracket and headtube by 13.35% and 35.64% respectively. Married to our aerodynamically optimised and ergonomic MANA bar, the combination makes for a super sleek high-performance racing machine.

The KOKO also comes with adjustable compliance via a dual position seatclamp configuration that can be switched from stiff to buttery smooth depending on the rider’s personal needs and/or road conditions.

Further engineering gains via the use of Latex Mandrels for the front triangle and T47 BB creates a super rigid platform for transferring every watt you produce into forward motion. Other small yet well-considered details such as the Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

Features:

  • Aero Racing Frame: Aerodynamic Performance
  • Cable Integration: Improved Aerodynamics and Clean Aesthetic
  • Adjustable Compliance: Tuneable Seatpost Flex for Added Compliance
  • Rear Wheel Cut-out: Improved Aerodynamics
  • Kamm-Tail: Aerodynamic and Stiffness where needed
  • Up to 32mm Tire Clearance: Increased Tire Options
  • T47 BB: Noise-free and Easy to Service
  • Latex Mandrels: Improved Stiffness to Weight in Front Triangle
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

    FRAME SPECS:

    • Carbon: 100% Made in Japan by Toray
    • Frame 6 Sizes: XXS, XS, S, M, L & XL
    • Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
    • Frame Weight: 1,096g Size M +/- 3%
    • Fork Weight: 419g Uncut +/- 3%
    • Seatpost Weight: 135g Size M +/- 3%
    • Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
    • Headset: 1.5” C2 Integrated System
    • Mechanical & Electric Shifting: Versatile Groupset Options
    • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
    • Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
    • Tire Clearance: 32mm
    • Brake Type: Disc Only
    • Bottom Bracket: Internal T47 (86.5)
    • Safety Standard: EN ISO 4210:2014
    • UCI Accreditation: UCI Approved

              TORQUE SPECS:

              • Saddle Rail: 6Nm
              • Seatclamp: 6Nm
              • Stem (Steerer): 6Nm
              • Stem (Handlebar): 6Nm
              • Front Derailleur Hanger: 3Nm
              • Rear Derailleur Hanger: 2Nm
              • BB Cable Guide Cover: 1Nm
              • Thru-Axle: 10Nm
              • Water Bottle Cage Bolts: 3Nm

                          GEOMETRY:

                          KOKO XXS XS S M L XL
                          Stack 466 491 516 540 566 591
                          Reach 356 365 374 382 392 401
                          A. Top Tube 490 515 531 548 564 581
                          B. Head Tube 70 94 114 133 163 188
                          C. Seat Tube Angle 74° 73° 73° 73° 73° 73°
                          D. Head Tube Angle 70° 70.5° 72.2° 73.1° 73.5° 73.5°
                          E. Seat Tube 425 427 447 472 497 521
                          F. BB Drop 73 73 73 73 73 73
                          G. Rear Centre 408 408 408 408 408 408
                          H. Wheelbase 957 970 973 971 984 1000
                          I. Front Centre 560 574 576 574 587 603
                          J. Fork Offset 53 53 53 43 43 43
                          K. Seatpost Setback 10 10 10 10 10 10
                          Stem NA NA NA NA NA NA
                          Stand over 693 708 730 755 780 805
                          Rider Height <165 160-170 165-175 170-180 175-185 >180
                          Max. Tire Size 32 32 32 32 32 32
                          Rear Caliper Mount 25 25 25 25 25 25



                          WHAT YOU GET:

                          • Frame
                          • Fork
                          • Headset
                          • Seatpost
                          • Thru-Axles
                          • Quick-Fit Spacers
