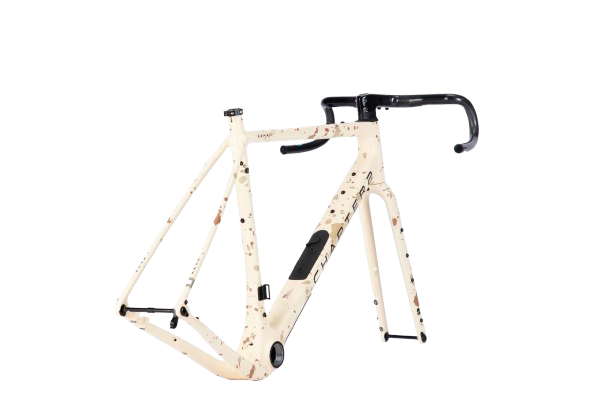

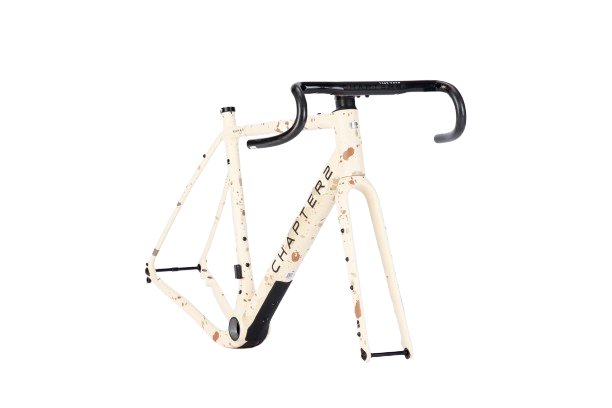

Chapter2 Kaha Disc Brake Gravel Frameset Sand - Options.

****This is a special order we can ship around approximately end of February!***

The KAHA features fully integrated cabling via the MANA-GRVL Handlebar (Sold separately), Internal downtube storage compartment as well as a race ready and well balanced performance geometry.

The design brief for the KAHA was relatively simple, scratched onto the back of an envelope were the words “Controlled Speed”.

However, the journey to arrive at the perfect solution was anything but simple. We don’t want to skimp on practical details like storage, pannier/ fender racks, or ability to fit TT-Clip bars. Iteration after iteration, review after review, every little detail and decision was scrutinized to the nth degree.

Needless to say, all that effort was worth it, as the final deliverable achieves all the performance metrics we had envisioned for a High-Performance Gravel Racer.

FRAME SPECS:

Carbon: 100% Made in Japan by Toray
Frame 5 Sizes: XS, S, M, L & XL
Fork Rakes (2): XS, S (65mm offset) and M, L, XL (55mm offset)
Frame Weight: 1,099g Size M +/-3%
Fork Weight: 409g +/-3%
Handlebar/Stem (MANA-GRVL): 330g (100x491mm) +/-3% (Sold separately)
Headset: 1.5” C2 Integrated System
Mechanical & Electric Shifting: Versatile Groupset Options
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance: 47mm (700C) & 47mm (650B)
Brake Type: Disc Only (140 & 160 Rotors)
Bottom Bracket: Internal T47 (85.5)

            TORQUE SPECS:

            Seatclamp: 6Nm
            Stem (Steerer): 6Nm
            Stem (Handlebar): 6Nm
            Front Derailleur Hanger: 3Nm
            Rear Derailleur Hanger: 2Nm
            BB Cable Guide Cover: 1Nm
            Thru-Axle: 10Nm
            Water Bottle Cage Bolts: 3Nm

                        GEOMETRY


                        KAHA XS S M L XL
                        Stack 519 545 571 596 622
                        Reach 377 386 395 404 413
                        A. Top Tube 535 553 569 586 603
                        B. Head Tube 101 129 148 175 202
                        C. Seat Tube Angle 73° 73° 73° 73° 73°
                        D. Head Tube Angle 71° 71° 72° 72° 72°
                        E. Seat Tube 436 462 491 512 541
                        F. BB Drop 70 70 70 70 70
                        G. Rear Centre 415 415 415 415 415
                        H. Wheelbase 1009 1027 1024 1041 1059
                        I. Front Centre 604 622 619 636 653
                        J. Fork Offset 65 65 55 55 55
                        Stem NA NA NA NA NA
                        Standover 751 776 804 826 853
                        Rider Height 160-170 165-175 170-180 175-185 >180
                        Max / Tire Size F/R 50/47 50/47 50/47 50/47 50/47
                        Rear Caliper Mount 25 25 25 25 25

                        WHAT YOU GET:

                        • Frame
                        • Fork
                        • Headset
                        • Thru-Axles
                        • Quick-Fit Spacers
