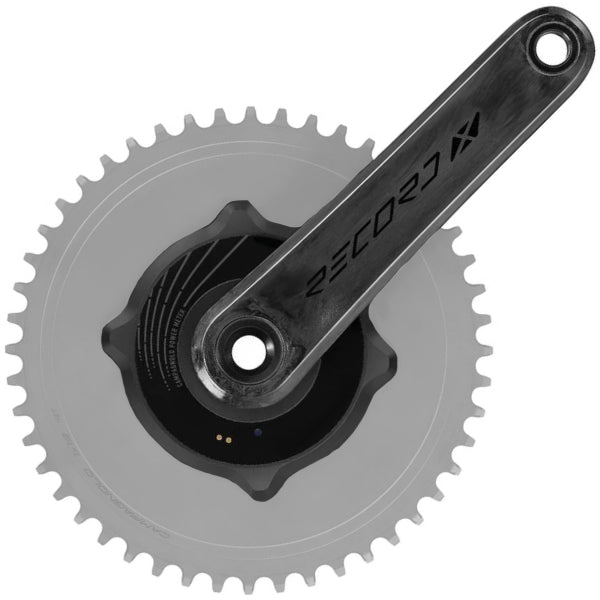

Campagnolo Record X 1x13 Speed WRL Crank Arm Set with Power Meter - Options

Campagnolo Record X Power Meter – Precision Measurement Built for Gravel

The Campagnolo Record X Power Meter crankset combines the dedicated gravel geometry of the Record X 1x13 platform with Campagnolo’s integrated CPM power measurement system. Built around carbon fiber crank arms, Ultra-Torque construction and QCK-Tech bearings, it delivers direct power transfer while measuring rider output on both sides with ±2% accuracy.

CPM Power Meter – 8 Strain Gauges and Integrated Gyroscope

Campagnolo’s CPM system uses 8 strain gauges and an integrated gyroscope to measure power from both crank arms in real time.

The power meter is integrated directly onto the spindle, helping isolate torque measurement from natural crank-arm flex for consistent and reliable data.

Dedicated Gravel Geometry

Record X uses a gravel-specific 152 mm Q-factor and 47.5 mm chainline, providing the clearance needed for modern gravel frames and wider tires while maintaining efficient drivetrain alignment.

QCK-Tech – Protected for Rough Conditions

The QCK-Tech bottom bracket platform uses low-friction bearings and Campagnolo’s patented sealing system to improve protection against mud and dust, making it particularly well suited to gravel riding and adverse conditions.

Aero Gravel Chainrings

The aerospace-grade aluminum chainrings use an aerodynamic design and a tooth profile evolved from Campagnolo’s Ekar experience for improved chain engagement, smooth power delivery and increased chain stability on rough terrain.

Record X chainrings are available from 38T to 48T, with compatible Platform 13 options extending up to 52T.

Real-Time Data and Quick-Snap Charging

Power output, battery status and settings can be monitored through compatible cycling computers or the MyCampy app.

Charging uses Campagnolo’s magnetic Quick-Snap connection, shared across the Record and Super Record 13 platforms.

Technical Specifications

• Drivetrain: 1x13
• Intended Use: Gravel / All-Road / Adventure / Racing
• Power Meter: Campagnolo CPM
• Measurement: Dual-sided
• Strain Gauges: 8
• Gyroscope: Integrated
• Accuracy: ±2%
• Crank Arm Material: Carbon fiber
• Spindle: Ultra-Torque steel
• Bottom Bracket Platform: QCK-Tech
• Q-Factor: 152 mm
• Chainline: 47.5 mm
• Charging: Magnetic Quick-Snap
• Connectivity: MyCampy app / compatible cycling computers
• Available Crank Lengths:
  • 165 mm
  • 170 mm
  • 172.5 mm
• Chainring Range: 38T–48T Record X, compatible options up to 52T
• Claimed Weight: 717 g — 172.5mm / 40T / bearings installed
• Finish: Exposed carbon / Record X graphics
